I have lost count of the number of times a builder has rung me on a Friday afternoon asking why "the shotcrete cracked." Nine times out of ten, the conversation that follows is the same. We work back from the call to the spec, then from the spec to the mix design, then from the mix design to who held the nozzle on the day. And we usually find the same thing. Shotcrete was treated as a type of concrete. It isn't. It is a placement method.

That single misunderstanding sits behind a lot of what goes wrong with sprayed concrete in Sydney. After almost three decades and 1,000+ projects, I can tell you the concrete itself is rarely the problem. The mix design, the spray technique, the substrate prep, the curing, the integration with the structural engineering sitting around it, that is where the work either holds or fails. So let me walk through what shotcrete actually is, when it is the right call, and what we engineer for.

What shotcrete actually is

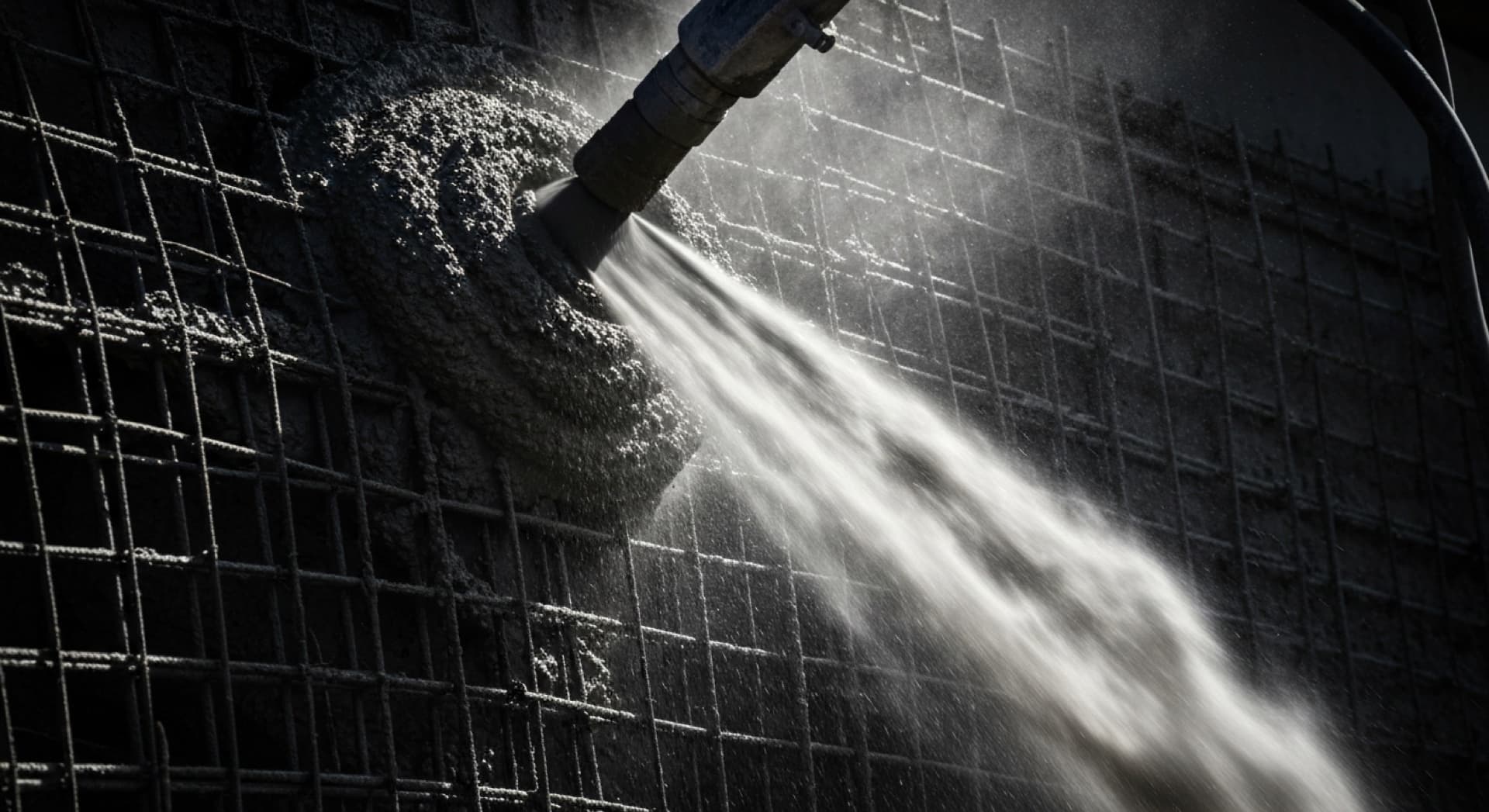

Shotcrete is concrete that is pneumatically projected onto a surface at high velocity. It bonds as it lands. There is no formwork on the face you are spraying onto. The placement pressure, the velocity, the angle of the nozzle, and the skill of the operator are what turn a wet slurry into a dense, structural element. It has been around since the early 1900s, originally as "Gunite", and the technique has been refined over the last century into two distinct families.

Wet-mix shotcrete is what we specify on most modern Sydney basement and shoring work. The concrete is fully batched at the plant, including water, then pumped to the nozzle where compressed air accelerates it onto the substrate. You get tighter control over the water-cement ratio, lower rebound (usually 5 to 10%), and consistent strengths in the 32 to 50 MPa range with the right mix. It is the right call when you are spraying volume, when the structural performance has to be predictable, and when you want the placement properly documented under AS 1379 and AS 3600.

Dry-mix shotcrete is the older technique. The dry components are conveyed to the nozzle and water is added at the tip, mixed by the nozzleman as it sprays. It allows higher early strength and works in tight, awkward spots where wet-mix logistics are impractical. The trade-off is higher rebound (often 15 to 25%) and a far greater dependence on the operator's skill. Variability is the cost of access. We use dry-mix selectively, where the geometry or the volume justifies it, never as a default.

In both methods, the same physics is doing the work. High-velocity placement compacts the concrete against the substrate without vibration. That is the whole point. You shouldn't compare shotcrete to formed concrete the way you would compare two beams. It is a different way of getting a structural element onto a surface. The right comparison is shotcrete vs concrete poured into formwork: same material family, different placement method, different rules around design and supervision.

When shotcrete is the right call

Shotcrete earns its place when formwork becomes impractical, expensive, or slow. A basement excavation in Sydney is the classic example. You have cut a vertical face. You need to lock it before the next layer of soldier piles loads up. You cannot form a wall against soil that is barely standing. You spray it.

The applications where shotcrete carries the day in Sydney work:

• Basement shoring walls. Soldier piles or contiguous piles with shotcrete infill between them, 100 to 200mm typical, sometimes 250mm where loads or fire ratings push it deeper. The infill ties the piles together and gives you a working face.
• Permanent retaining walls. Where excavation depth, boundary clearance, and time on programme make a sprayed face the cleanest answer. Often combined with soil nails or ground anchors.
• Slope stabilisation. Rock cuts, embankments, anywhere the geometry is irregular and the engineering is about restraining what is already there rather than building something new.
• Tunnels and shafts. First-pass linings, ground support. The classic shotcrete use case.
• Repair and rehabilitation. Spalled concrete on existing structures, corroded reo replacement, strengthening overlays on bridges and retaining structures.
• Vertical and overhead applications where conventional formwork would cost more than the element itself.

The thread that runs through that list is the geometry. When the surface is irregular, the access is restricted, or formwork would dominate the cost, shotcrete is usually the smart call. When you are pouring a flat slab on ground, it almost never is. Use the placement method that suits the geometry. Don't force one because it was specified on the last job.

The engineering specifics

This is where the work actually happens. A shotcrete element looks simple. Spray concrete on a surface. The structural and geotechnical engineering behind it is anything but.

The mix has to be designed for the method. Wet-mix shotcrete typically runs 400 to 450 kg/m3 of cementitious content, often with 30 to 40% fly ash or slag for workability and long-term durability. Aggregate maximum size sits at 10mm so the line doesn't clog and the rebound stays controllable. Slump is targeted between 80 and 180mm depending on whether you are spraying vertical or overhead. Strength classes from 32 MPa up to 50 MPa are standard for shoring and structural work, all designed under AS 3600 and supplied under AS 1379.

Thickness matters. A 100mm shoring infill is doing a different job to a 200mm permanent retaining wall, and the steel reinforcement, mesh layouts and lap details follow accordingly. Steel fibres are increasingly common as a partial replacement for mesh, particularly on irregular substrates where placing mesh against an uneven face is its own problem.

Rebound is the percentage of material that bounces off the substrate during spraying. It is a quality indicator and a cost line. Good wet-mix operators on a sound substrate run 5 to 10% rebound. Anything north of 15% means something is wrong, the mix, the air pressure, the nozzle angle, or the operator. Rebound that lands on a lower lift becomes laitance that compromises the bond on the next pass. You specify rebound limits in the project documentation, not just compressive strength.

Operator competency is a structural variable, not a procurement detail. The nozzle has to be held perpendicular to the substrate. Distance from the face has to stay consistent. Overhead spraying changes everything. We require certified nozzlemen on structural shotcrete, and we get involved in the pre-construction trial panels that prove the operator and the mix together hit the spec. You spec the mix, the cover, the bar arrangement, and you spec who is allowed to spray it.

Substrate preparation drives the bond. The substrate has to be clean, sound, and damp. Loose material, rebound from a previous lift, dust, and free water all break the bond. On a shoring face we are bonding onto raw ground or onto a previous shotcrete lift. On repair work we are bonding onto an existing structure, often with section loss or chloride contamination, and the prep regime needs to match.

Then there is Sydney's ground itself. The Hawkesbury sandstone we hit on the upper north shore and parts of the eastern suburbs gives a stable, predictable face that takes shotcrete well. The Ashfield shale we hit through the inner west is fissile, weathers fast on exposure, and needs to be sealed quickly to stop the face deteriorating. The reactive clays in the south-west, the alluvial soils through the river corridors, the perched water table you find more often than you'd like in Sydney basement work, all of it changes the engineering. The ground always has the last word. Shotcrete is the tool you reach for to get a face stabilised before that ground gets a chance to misbehave.

How ACSES approaches shotcrete

When we design a basement and the shoring methodology calls for shotcrete, we treat it as one problem with several inputs, not a single line item on a drawing.

We specify the mix to suit the application. Strength class, cementitious content, supplementary materials, fibre content where appropriate, slump range, all referenced back to the loads we are designing for and the durability class the structure needs to meet. The mix has to suit the spraying method, the geometry, and the exposure environment. We don't pull a number off a previous job. We size it to this one.

We supervise the pre-pour. Reinforcement layouts on shotcrete faces are unforgiving. Cover, lap lengths, mesh termination, the way bars are tied so they don't shadow during spraying. We are on site reviewing the steelwork before the spray rig starts. If the steel is wrong, the shotcrete will hide the problem, then reveal it on a core test six weeks later. Better to catch it at the cage.

We coordinate the shotcrete with the rest of the shoring methodology. Soldier piles with shotcrete infill is the typical Sydney basement pattern, and the design only works if the pile spacing, the infill thickness, the lateral load path back into the building, and the temporary propping regime are all designed together. The shoring system is one structural problem from the back of the wall to the basement slab, with the civil engineering sitting alongside on stormwater, OSD, and the way the basement penetrates the existing services. We hold all of it in the same model.

We dilapidate the adjoining structures before we start. Sydney basements are usually within a metre of a boundary, often with a neighbour's wall sitting close. Pre-excavation dilapidation surveys, vibration monitoring during spraying and excavation, agreed crack monitoring thresholds, all of it is part of the package. The shotcrete process generates vibration and noise, and the legal exposure if a neighbour's wall cracks halfway through your shoring sequence is far more expensive than the engineering that would have prevented it.

We do the buildability check. Can the spray rig reach the face? Where does the rebound fall, and how do you stop it contaminating the next lift? How is the steel propped against the face during spraying without creating shadow zones? What is the cure regime, and who is responsible for keeping the wall wet for the first 72 hours? These are the questions that decide whether the design works on paper AND on site, which is the only standard worth holding. For more on how we sequence this with the rest of the basement structure, see how we design basement structures in Sydney.

Closing thought

Shotcrete is one of the most underappreciated tools in Sydney basement construction. It does the unglamorous work. It holds the ground while the rest of the building takes shape, and once the permanent structure is up, it usually disappears behind a tanking membrane and a finish wall and nobody ever thinks about it again.

But the buildings we design across mid-rise and high-rise Sydney would not be possible without it. The deep basements, the tight boundary excavations, the shoring against existing rail corridors and heritage structures, all of it rides on a sprayed concrete face that was engineered, supervised, and built properly. Treat shotcrete as a placement method, not a product. Design the mix, design the supervision, design the operator. And the wall holds.
