Transfer Slabs And Transfer Beams

A residential floor plate wants columns every six metres or so. A car park wants them at the spacing that suits the bays. A retail or commercial level underneath wants them almost nowhere.

Those three grids rarely line up, and where they do not, a transfer structure carries the change.

What it actually does

The columns above land on a slab or a beam, and that element spans to columns below that sit somewhere else.

Every bit of load from every storey above is collected and redirected. On a residential tower over a podium, that is an enormous concentrated load applied to a single element.

Which is why a transfer structure is almost always the thickest, most heavily reinforced and most carefully designed element in the building.

The forms it takes

A transfer beam. Deep, heavily reinforced, spanning between columns and picking up the columns above. Efficient where the geometry suits it, and it eats headroom.

A transfer slab. A thick slab across the whole floor plate, frequently post-tensioned. More flexible about where the columns above land, heavier and more expensive.

A transfer truss or wall. Used where the depth is available, most often over a large clear span, and frequently the most efficient answer structurally.

The choice usually comes down to headroom, which is the one thing nobody wants to give up.

Why they are demanding to design

Punching shear. A column landing on a slab wants to push straight through it. At transfer loads this governs constantly, and the shear reinforcement around those points becomes congested.

Deflection and its consequences. A transfer element deflects under load, and everything above moves with it. That differential movement has to be accounted for in the structure above and in the facade, or it shows up as cracking.

Construction sequence. The transfer structure is loaded progressively as the floors above are built. It has to be adequate at every stage, not just at completion, and the props below cannot come out until it is. That is a [backpropping](/blog/backpropping-and-temporary-works) problem of its own.

Congestion. Reinforcement at a transfer point can be so dense that placing concrete through it is genuinely difficult. A detail that cannot be built is not a detail, which is the point made in [why engineering drawings must be buildable](/blog/why-engineering-drawings-must-be-buildable).

Long term behaviour. Creep and shrinkage in a heavily loaded element continue for years, and the deflection at ten years is not the deflection at handover.

Post-tensioning

Most large transfer slabs are post-tensioned, because it controls deflection and allows a thinner section than reinforcement alone.

It also brings its own requirements: tendon layout coordinated with every penetration, stressing sequence, and an absolute prohibition on core drilling afterwards without locating the tendons first. That last one is covered in [core drilling and penetrations](/blog/core-drilling-and-penetrations-in-existing-slabs) and it is one of the more expensive mistakes available on a completed building.

The broader case for the method is in [post-tensioned concrete, when and why](/blog/post-tensioned-concrete-when-and-why).

The cost argument

A transfer structure is expensive. The concrete, the reinforcement, the formwork, the props and the programme all cost more at that level than anywhere else in the building.

Which means the commercial question is whether the grid change is worth it.

Sometimes it clearly is: the retail level needs the clear span, or the car park needs the bays. Sometimes the architectural grid could shift a metre and remove the transfer entirely.

That conversation has to happen early, while the grids are still on paper. It is one of the clearest cases for [early engineering involvement](/blog/why-early-engineering-involvement-saves-money), because once the planning approval fixes the layout the transfer is locked in.

Where they turn up

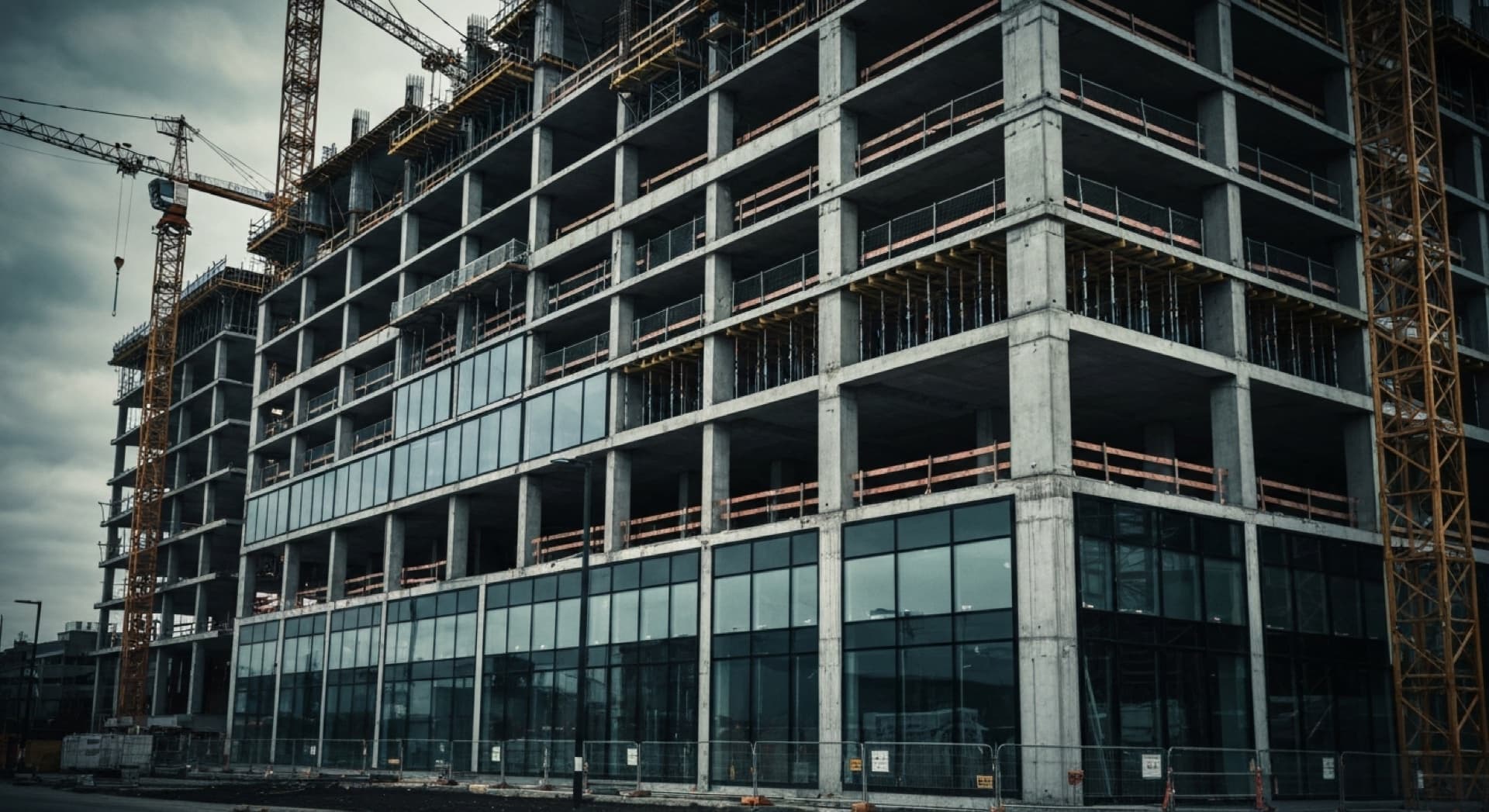

Residential over retail. Towers over podium car parks. Apartments over a supermarket. Almost every mixed use development in Sydney has one, which is why it is a recurring theme in [mixed use developments](/blog/mixed-use-developments-engineering-challenges).
