Shoring and Bulk Excavation: A Developer's Guide

Shoring and Bulk Excavation

For any development that includes basement levels, understanding shoring systems and bulk excavation methodology is critical. The decisions made during the shoring design phase directly impact project cost, programme, and risk.

What Is Shoring?

Shoring refers to the temporary or permanent support structures used to retain the ground around an excavation. Without shoring, the sides of an excavation would collapse, endangering workers and adjacent structures.

Types of Shoring Systems

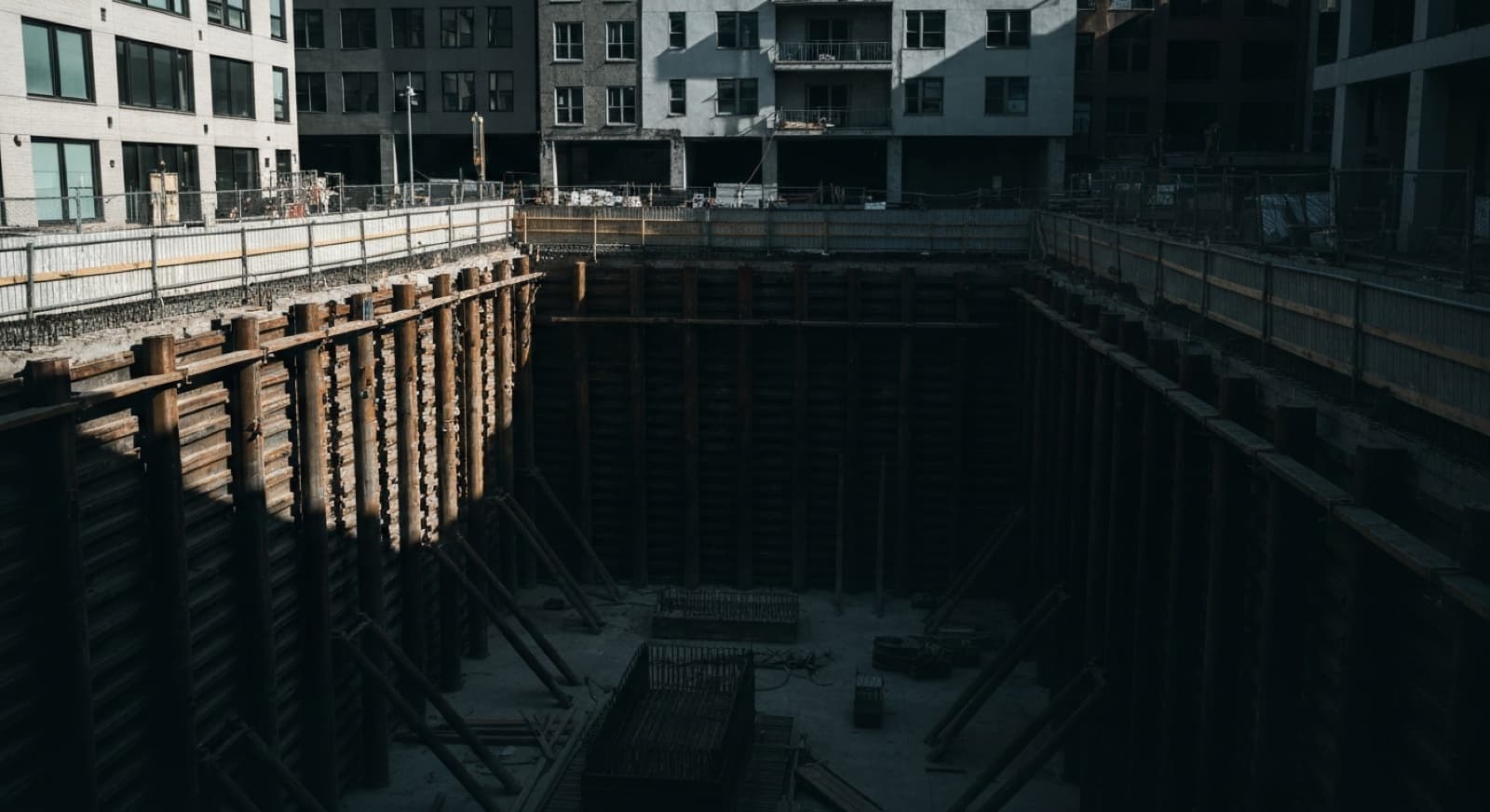

Soldier pile walls consist of steel H-sections installed at regular centres with timber or concrete lagging spanning between them. This is one of the most cost-effective shoring systems for moderate excavation depths in competent ground.

Contiguous pile walls use closely spaced bored concrete piles to form a continuous wall. This system provides better ground retention than soldier piles and is suitable for deeper excavations or where groundwater is present.

Secant pile walls use overlapping bored piles to create a waterproof wall. This is the premium shoring solution, used where groundwater exclusion is critical or where adjacent structures are sensitive to ground movement.

Sheet pile walls use interlocking steel sheets driven into the ground. This system is effective in granular soils and can be extracted and reused after construction.

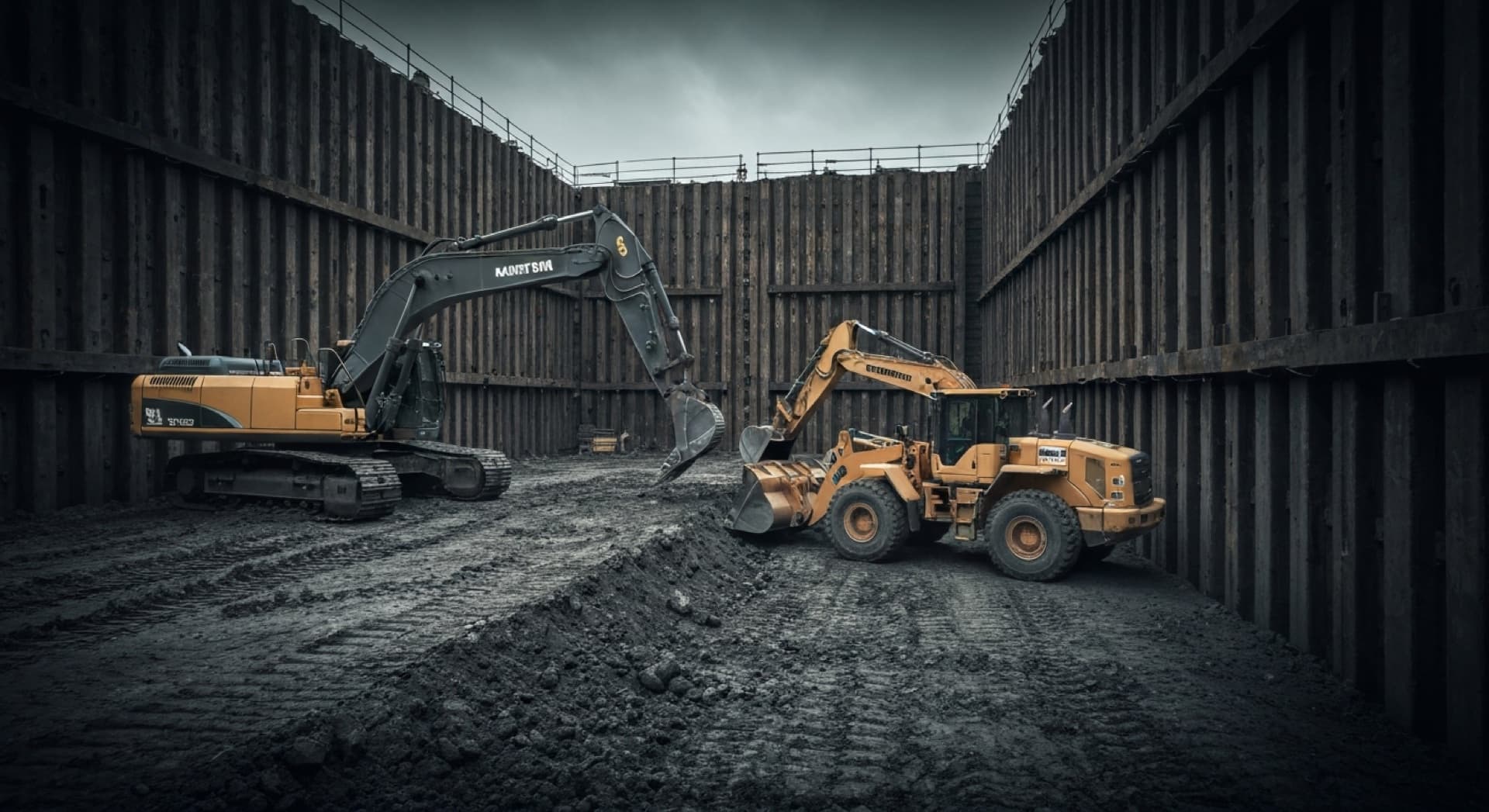

Excavation Methodology

Bulk excavation methodology must be carefully planned to ensure stability at every stage. The excavation is typically performed in stages, with each stage designed to maintain the stability of the shoring system and minimise ground movement.

Risk Management

The primary risks during excavation include ground movement affecting adjacent structures, groundwater ingress, and instability of the excavation faces. At ACSES Engineers, we manage these risks through thorough geotechnical investigation, conservative design assumptions, and rigorous construction monitoring.
